uSmart 3300 NexGen

  • usmart-3300-data_manage
    Advanced computer technology and open architecture to streamline
    workflow and easily store data.
    • 1TB SSD
    • Integrated CD/DVD+RW
    • Easy integration with EMR
    • Wireless networking available
    • Easily transfer DICOM images to PACS
    • Open architecture for file management and 3rd party software
    • DICOM Structured Reporting (DICOM SR)
  • Terason offers multiple training and educational opportunities to advance your knowledge in ultrasound while accommodating your busy schedule.
    Smart
    TrainingTM
    A dedicated team of specialists thoroughly train on the system functionality.

    Learn more >>

    uConnect® Training
    Terason customers have the unique ability to quickly gain access, through the ultrasound system, to any of our clinical and educational specialists.

    Learn more >>

    Smart
    GuideTM
    Instructional tutorial demonstrating how-to use the ultrasound system.

    Learn more >>

    Society Meetings and Conferences
    Attend one of many hands-on workshops for expert training from leaders in
    your field.

    Learn more >>

    UltraSmartTM Workshops
    Hands-on training programs designed to provide the techniques and tools to be proficient in musculoskeletal ultrasound (MSKUS).

    Learn more >>

    Partner
    Courses
    Hands-on training and education opportunities to learn from experts
    in the field.

    Learn more >>

    MSK Educational Website
    Terason is committed to providing our customers necessary tools to be skilled
    in MSKUS.

    Learn more >>

  • Model
    .
    Applications
    Bandwidth
    Biopsy Kit
    15L4 Smart MarkTM
    Part #10-3289
    Transducer-15L4
    Arterial
    Breast
    Carotid
    Dialysis Access
    Lung
    Musculoskeletal
    Neonatal Hip
    Nerve Block
    Ophthalmic
    Thyroid
    Vascular Access
    Venous
    15 – 4 MHz
    N/A
    16L5 Smart MarkTM
    Part #10-3389
    16L5-Probe
    Breast
    Lung
    Musculoskeletal
    Nerve Block
    Vascular Access
    16 – 5 MHz
    N/A
    12L5*
    Part #10-3276
    Transducer-12L5
    Arterial
    Breast
    Carotid
    Dialysis Access
    Lung
    Musculoskeletal
    Neonatal Hip
    Nerve Block
    Ophthalmic
    Thyroid
    Testes
    Vascular Access
    Venous
    12 – 5 MHz
    Civco 612-085
    Civco 683-002
    8L2 Smart MarkTM
    Part #10-3280
    Transducer-8L2
    Arterial
    Carotid
    Venous
    8 – 2 MHz
    ​Civco 612-085
    Civco 610-608
    4V2
    Part #10-3216
    Transducer-4V2-156
    Cardiac
    FAST
    TCD
    4 – 2 MHz
    N/A
    8V3
    Part #10-3329
    Transducer-8V3
    ​Pediatric Cardiac
    TCD
    9 – 3 MHz
    N/A
    5C2
    Part #10-3278
    Transducer-5C2
    Abdominal
    FAST
    Fetal Cardiac
    Gynecological
    Musculoskeletal
    Obstetrical
    Renal
    Thyroid
    Visceral
    5 – 2 MHz
    Protek #7138
    16 #4216
    18 #4218
    22 #4222
    9MC3
    Part #10-3255
    9MC3-cropv2
    Abdominal
    Cardiac
    9 – 3 MHz
    N/A
    8EC4
    Part #10-3274
    Transducer-8EC4
    Gynecological
    Obstetrical
    Prostate
    8 – 4 MHz
    Civco 610-590
    Civco 610-693
    Civco 610-588
    16HL7
    Part #10-3279
    Transducer-16HL7
    MSK (Wrist and Hand)
    MSK (Foot and Ankle)
    Venous
    16 – 7 MHz
    N/A
    Pedoff
    Part #10-3282
    Transducer-Pedoff
    Cardiac
    N/A
    N/A
    8TE3
    Part #10-3087
    Transducer-8TE3
    Cardiac
    8 – 3 MHz
    N/A
    *Not for sale in the US, EMEA
  • Imaging Modes
    2D (B-Mode)
    M-Mode
    Anatomical M-Mode
    Color Doppler
    Pulsed Wave Doppler
    Power Doppler
    Directional Power Doppler
    Continuous Wave Doppler
    Tissue Doppler
    Tissue Harmonic Imaging with SuperHarmonicsTM
    System Features
    1 TB SSD
    802.11 b/g/n Wireless Network, BT 4.0
    Processor: 2.5 GHz, Intel® CoreTM i7
    8G RAM DDR3 Onboard Memory
    15" Backlit Polarized Anti-Glare LCD, Ultra-Wide Viewing Angle
    Removable Lithium Ion Battery
    Imaging Channels: 256
    Dynamic Range: 200 dB
    Video Output: 1024 x 768
    Built-In CD/DVD+RW Drive
    Built-In Camera
    Dual Speakers with Subwoofer
    4 USB Ports
    Gb Ethernet Port
    2 HDMI Ports
    DC Input
    Headphone Jack
    Microphone Jack
    Kensington Security Slot
    ECG and Auxiliary Ports
    uConnect® Remote Capabilities
    Windows® 10 Operating System
    Cold Boot-Up Time: < 55 Seconds
    Imaging Features
    Smart Resolution Imaging

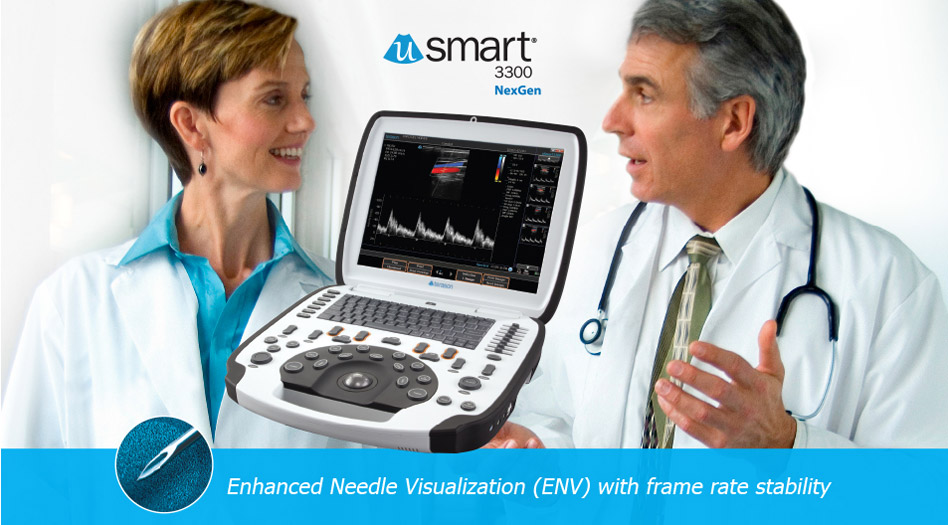

    Enhanced Needle Visualization (ENV)
    TeraVisionTM II
    OmniBeamTM
    Dynamic Depth Resolution (DDRTM)
    TeraZoomTM
    Trapezoid
    Color/2D
    Triplex/Duplex (Simultaneous/Non-Simultaneous)
    Split Screen
    Full Screen
    Auto Optimization
    2D Beam Steering
    Application-Specific Presets
    TeraScapeTM
    Post Processing
    Intima-Media Thickness (IMT)
    Ergonomics
    Smart Console Design
    Optical Trackball (Full-Size)
    Ergonomic Key Positioning
    Reliable and Responsive High-Quality Controls
    Backlit High-Resolution LCD
    Backlit Keyboard
    Comfort Handle
    Intuitive User Interface
    Tilt Feet
    Workflow
    Color Change Controls for Active Mode
    Prospective and Retrospective Capture
    Cine Loop Trim Capability
    Advanced Measurement Tools
    Configurable Report Builder
    Store, Print, Media Export
    JPEG/AVI/BMP/PDF Media Export
    DICOM 3.0
    DICOM Modality Worklist
    DICOM Storage
    DICOM SR
    Measurement Packages
    Cardiology
    OB
    Vascular
    Physical System Specifications
    System Height: 3.5"/ 89 mm
    System Depth: 15.6"/ 396 mm
    System Width: 15.3"/ 389 mm
    Weight: 14.8 lb / 6.7 kg
    Cart Design and Ergonomics
    Sleek Body Style
    Weight: 85 lb / 38.5 kg
    Mobile Design
    4-Wheel Steering for Excellent Mobility
    4 Locking Wheels
    3 Transducer Holders
    Removable and Washable Gel Holder
    On-Cart Storage Basket
    Transducer Connector Holders
    Cable Management
    OEM Printer Bay
    Multi-Probe Connector Kit (Optional)
